JCT Analysentechnik GmbH

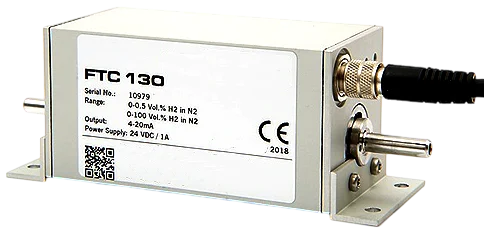

FTC-130TRA
Based on micromechanic silicon chip. Detector mounted in a stainless steel housing. Stainless steel housing and electronic mounted in a sealed aluminium housing. Operation of the detector with two heating elements and a temperature sensor at constant 63 °C. Gas concentration corresponds to required compensation energy, depending on cooling of the chip due to varying thermal conductivity. Precise and long-term stable thermal conductivity measurement. Independent of gas flow and gas pressure. High sensitivity independent of the ambient temperature. Fast response time (To approx. 1 s). Pressure resistant gas paths out of stainless steel (10 bara). Robust tight aluminium housing (IP65). Small dimensions. Linear signal output 4 to 20 mA. Easy calibration with covered push buttons. Factory configuration and calibration.
Exact Analytical is an appointed JCT Analysentechnik GmbH distributor in Malaysia, providing product consultation, integration and lifecycle support for this thermal conductivity.
- Category
- Process Analytics
Applications
- Extractive gas analysis
- Quality and process monitoring
- Contiuous concentration determination of single gas components e.g. Hz, COz, O2, He
- For the Hz-measurement at heat treatment in the metal industry
- For the Hz-measurement in miniplants
Technical specifications
Product Overview
Comprehensive technical specifications
Models & Variants
1 specification
- Gas Analyzer
Malaysia product and service support
Discuss model selection, application suitability, system integration, calibration, training and maintenance with the Exact Analytical technical team.
Technical document
Review the manufacturer datasheet for model features and technical specifications, then confirm application requirements with our team.
Download FTC-130TRA datasheet
