JCT Analysentechnik GmbH

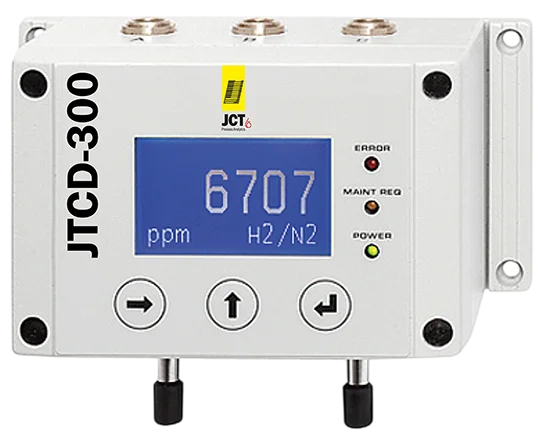

JTCD-300

Precise and long-term stable gas analysis according to the thermal conductivity measuring principle. Microprocessor based 128 x 64 point graphic display. Operation via 3 keys or PC-based service program. Small robust aluminum housing for field operation (protection class IP65). Linear electrically isolated current output 4 to 20 mA, start and end point concentration freely selectable 3 configurable relays for alarm message and device status Precise linearisation for binary gas mixtures like e.g. H2, He, COz, CН4 in Ne or Ar in the permanent storage; additional customer specific lineari- sation with polynomial of 6th order Indication in ppm or Vol.-%, resolution adjustable up to 1 ppm Pressure resistant and vacuum leaktight gas path out of stainless steel (SS316Ti). High sensitivity e.g. O to 0.5 Vol.-% H2 in N2; noise < 10 ppm H2 in N2. Durable measuring cell. Multi gas mode. Offsetting the cross sensitivity of an interfearing component possible. Quick response time (T90 < 1 s). Comfortable menu and operater navigation at calibration and parameterisation Classic two-point calibration or one-point calibration RS232-access to all (measuring) data and parameters Corrosion and condensate protection for sample gas path availalbe Up to 6 years lifetime for optional O2 sensor

Exact Analytical is an appointed JCT Analysentechnik GmbH distributor in Malaysia, providing product consultation, integration and lifecycle support for this thermal conductivity.

Category

Process Analytics

Type

Thermal Conductivity
